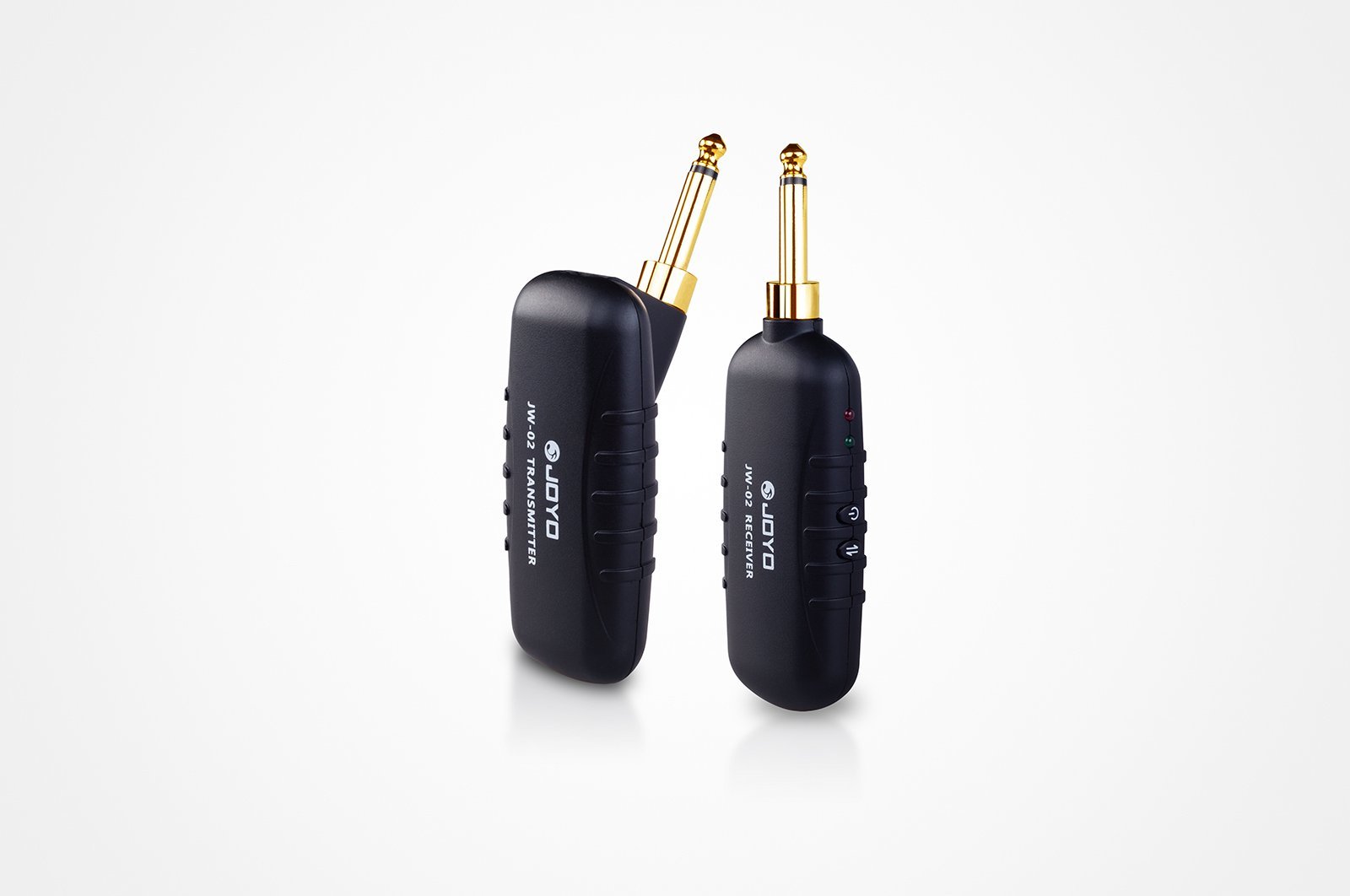

Joyo JW-02 wireless system – draadloos systeem voor gitaar en andere instrumenten

Beschrijving

Gedaan met het kluwen van kabels en beperkte manouvreerruimte. Je kan je nu overal vrij bewegen in de repetitieruimte, op het podium, in de zaal!

Joyo JW-02: het meest precieze draadloos systeem voor je gitaar (of ander elektrisch muziekinstrument)

Inclusief oplader.

JW-02 features 4 channels, when several sets of JW-02 are being used simultaneously, you can choose different channels on your own to avoid interference. If the red light flashes after you switch on the transmitter or the receiver, it indicates low battery, please charge it in time with the USB cable.

Signal distortion<0.04%, Plug and play, user-friendly

Parameters of JW-02 transmitter:

Built-in lithium battery

Battery: 3.7V 500mAh

Transmit power: 7dBm

Operating frequency: 5.8GHz frequency band

Anti-jamming method: adaptive frequency hopping

Frequency response: 20Hz-20KHz

Delay: <7ms

Sample rate: 24-bit/48KHz

Power: DC5V/500mA

Input Impedance: 220KΩ

Plug’s type: 6.35mm mono plug

Dimensions: 38*50*114mm

Weight: 49g



Parameters of JW-02 receiver:

Built-in lithium battery

Battery: 3.7V 500mAh

Reception sensitivity: -85dBm

Received frequency: 5.8GHz frequency band

Anti-jamming method: adaptive frequency hopping

Signal distortion: <0.04%

Gain: 0 dB

SNR: 105 dB

Frequency response: 20Hz-20KHz

Delay: <7ms

Sample rate: 24-bit/48KHz

Power: DC5V/500mA

Output Impedance: 100Ω

Plug’s type: 6.35mm mono plug

Dimensions: 40*20*129mm

Weight: 50g
